EMI / RFI Shielding
An EMI shielding glass is an optically transparent and conductive barrier that significantly reduces the amount of electro-magnetic radiation that might pass through it. These shielding glasses are commonly surrounded by non-transparent barriers that are more effective EMI shields, but do not offer the optical transmission needed to allow visible light to pass through the barrier.
The combination of high light transmission, near-neutral color and low electrical resistance makes this glass an ideal EMI/RFI shield for electronic displays requiring moderate shielding effectiveness and high-quality optical properties. A coating of 8 to 20 ohms/sq has been chosen to provide a good balance between shielding and optical performance.
EMI/RFI-shielded glass is suited for outdoor use and provides excellent shielding performance from 10 KHz up to 40 GHz. In addition the coating has good scratch-resistant properties. EMI Shielded Glass can be used to screen the Radiofrequency waves in equipment of many electronic dispositive: avionics monitor, military displays, hospital MRI room, military shelter, confidence o intelligence room windows, nuclear control room plant, etc.

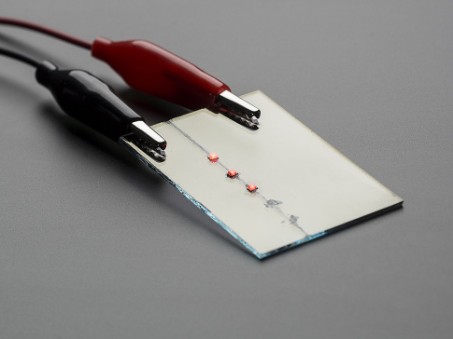

Our EMI/RFI-shielded glass is a float glass with a conductive coating on one side to prevent EMI/RFI and provides a good balance between shielding and optical clarity.
Technical details
Light transmission > 80%
Electrical resistance: 8 - 20 Omhs/sq
Temperatures: -60 / +220 ° Celsius
EMI-shielding effectiveness: 5 - 60 dB (10kHz - 40GHz)
Available thicknesses: 2.2, 4, and 6 mm
Advantages
Excellent EMI/RFI shielding
High transparency
High Scratch resistant
Suited for outdoor use
Any shape or size available
Can be produced or cut according to CAD drawing
Options (on request)
Tempering to increase impact resistance
Anti-glare coating
Anti-reflective coating
Laminating
Silver printing
Mesh
